Installing the XiP Pro Build Plate

The build plate is what the printed part adheres to during the print process. Maintaining a clean build plate is essential for print success.

Ensure your build plate is free of any dust, debris, or cured resin on the surface. Inspect the build plate before every print and ensure that it has a clean, flat, smooth surface. To install:

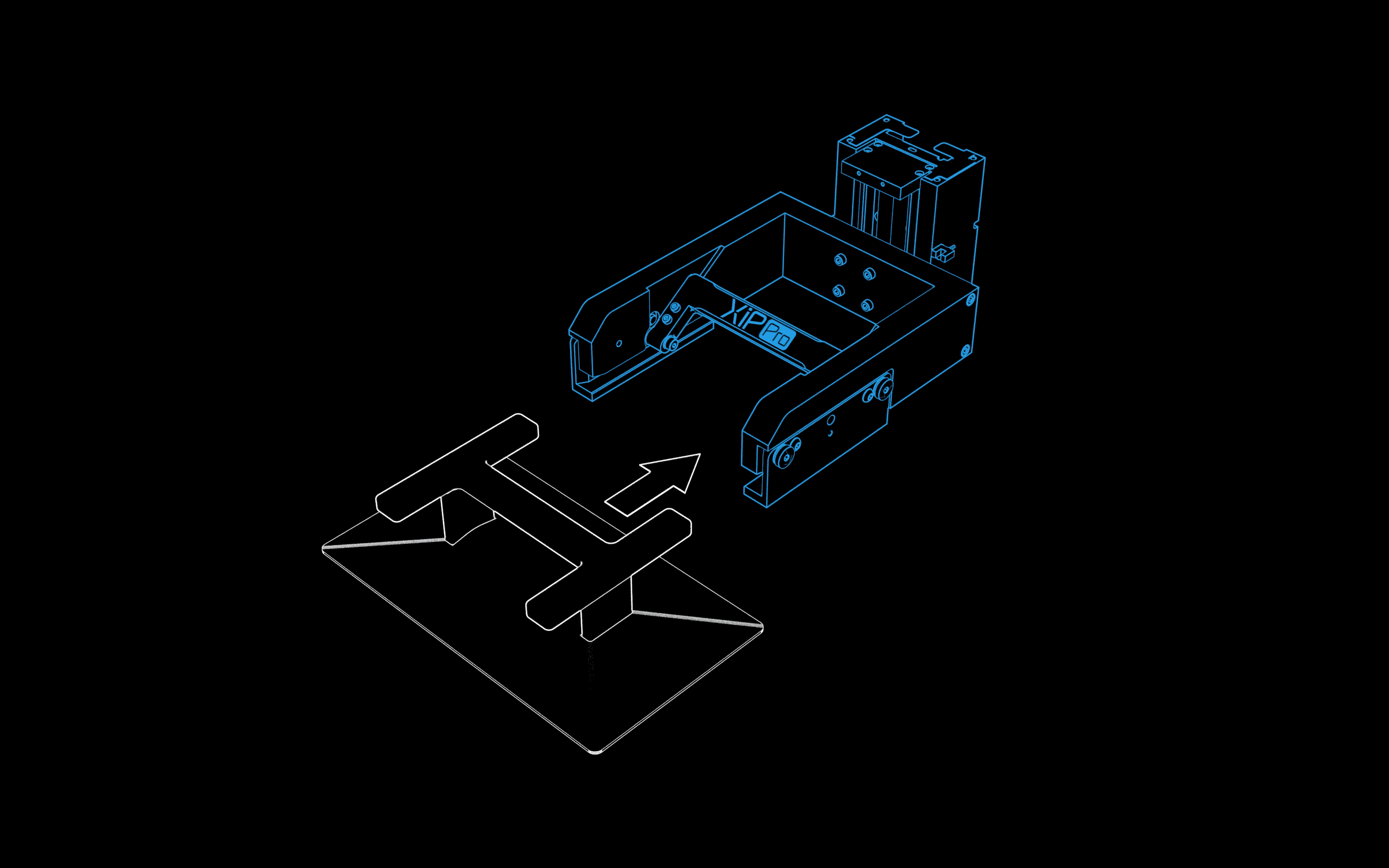

  1. Open the printer door, slide the build plate onto the Z-axis platform until seated flush with the z-stage arm. It should not stick out.
  1. Lift the lever to lock the plate in position.


To maintain the build plate use a scraper to remove cured resin and wash plate in isopropyl alcohol if needed.
