This guide will help you upgrade your xWASH arms to adapt to the new XiP Pro build plates.

Prepare a 4mm Allen Wrench and 2 new xWASH arms (12491-01-RevA)
Move travel to the up position from the controller.

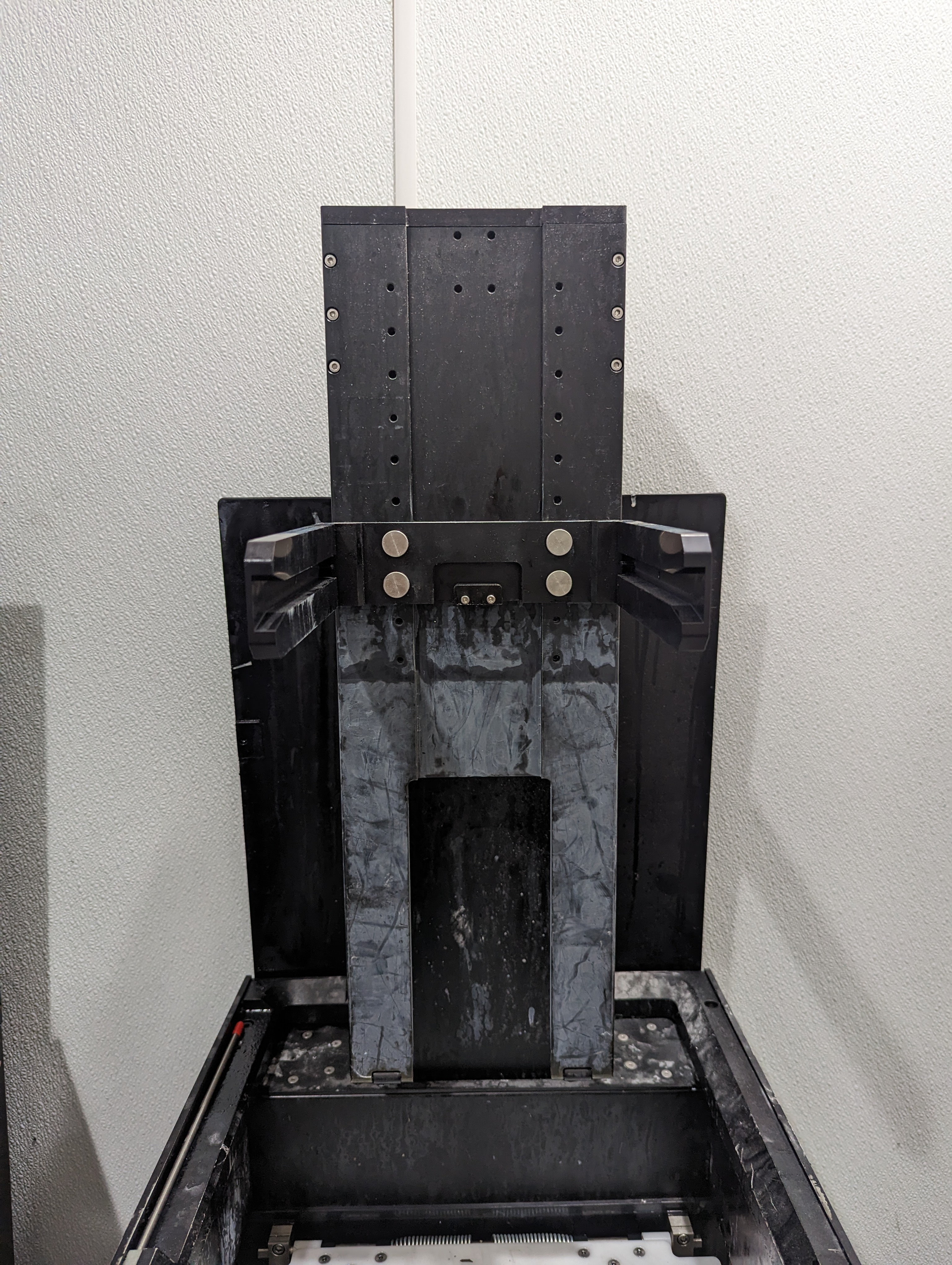

On the side of the arms, there are 2 screws holding each side to the dovetail center. Remove the 2 screws on one side to remove old arm.
Install the new arm onto the dovetail center.
Remove the 2 screws on the other side to remove old arm.
Install the new arm onto the dovetail center.

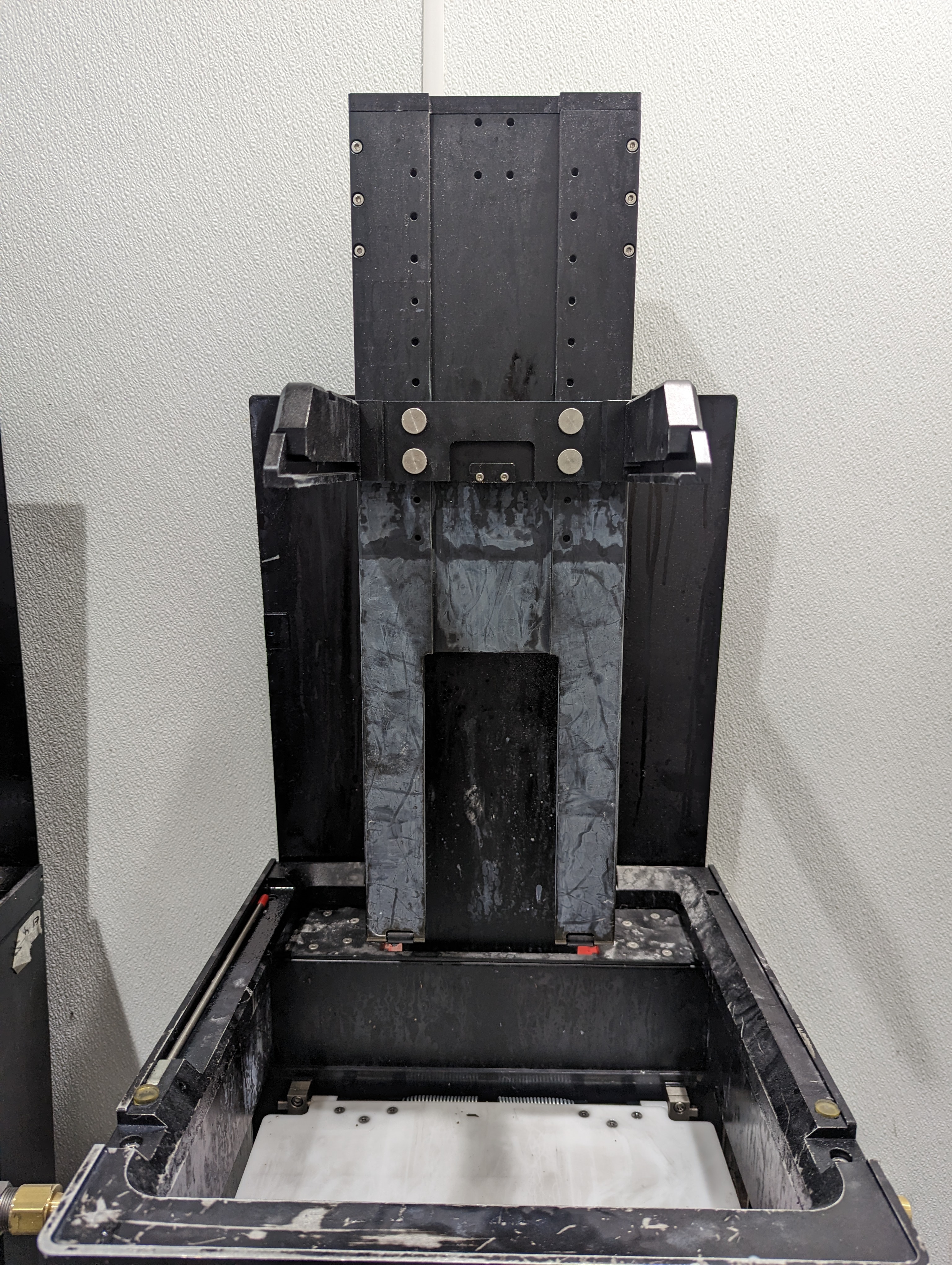

Installation complete.
