Printing a bottle or vase? Often the best approach is to print in 2 pieces to avoid cupping.

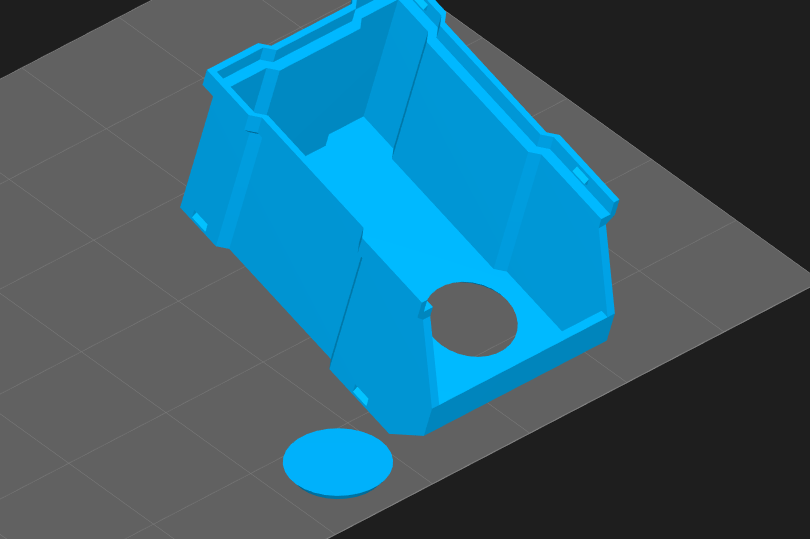

Often to avoid cupping or to allow printing hollow parts, it is necessary to add a perforation to the model. Opt to keep the subtracted part (plug), and join it to the part after washing.

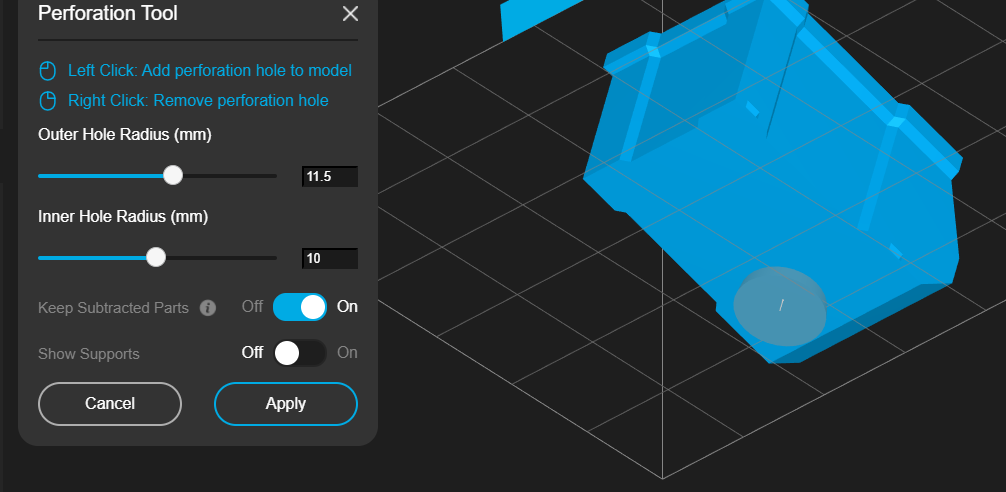

Leave 1-2mm difference in inner and outer hole radius so the plug will be easier to patch. Use as large of a hole as possible - avoid fluid restrictions which still allow a pressure build up. You can add plugs in NexaX Pro software, or separate a plug in CAD which allows following the part contour.

This video demonstrates best practices for filling plugs.

Learn how to make a custom plug cut in F360, which can result in a clean look for your models.

• Bottle Modification using Autodesk Fusion360.pdf1 MB
